Volumetric Doser

Volumetric dosers are adaptable to auto-proportion mixing of new materials, regrinds, masterbatch or additives, adaptable to injection, extrusion or blow molding field. A stepper motor is used in this series, according to the set mixing proportion, the microprocessor accurately controls rotation of the high precise dosing screw to squeeze out materials with an deviation of ±1%. This volumetric doser can connect with various molding machine signals in synchronicity, to ensure the stability of the products.

Advantages of Volumetric doser.

It is adopted with the stepping motor that can accurate the output volume
The PLC controller takes accurate calculation of color batch or addictive proportions
It allows up to 50 permanent recipes that can be reused at any time
The screw is made of the durable stainless steel 304
The module structural design makes it even handy for installation, cleaning and parts replacement.
Accommodated with both injection and extrusion condition.

Product Details

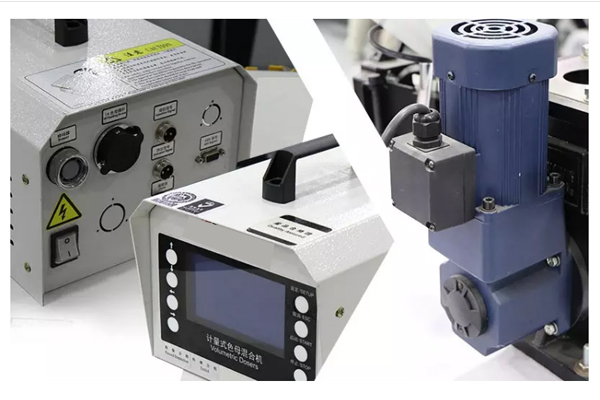

High Quality Component

Using the high accuracy hybrid stepping motor, measurement accuracy and output scope.
The adopted PLC panel shows reliable performance and easy maintenance.
Can store 50 sets of formula, can quickly start the machine

Humanized Design

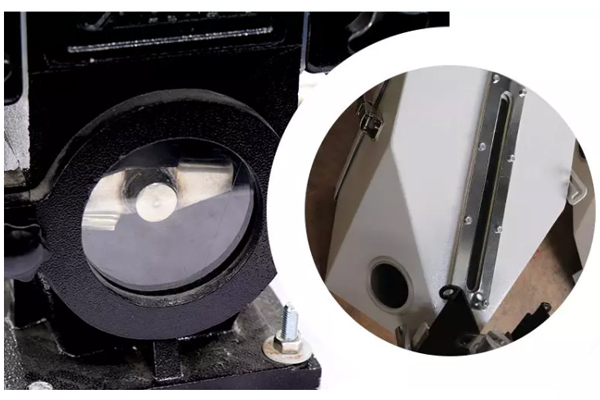

Large opening on the side of the neckpiece, large window and improved static blending.

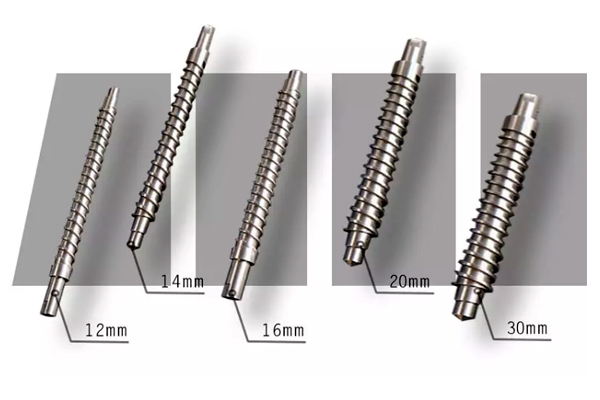

Screw of Doser

Dosing screw material is 304 stainless steel, and chrome plated for durability
The specifications are optional 12/14/16/20/30 mm.

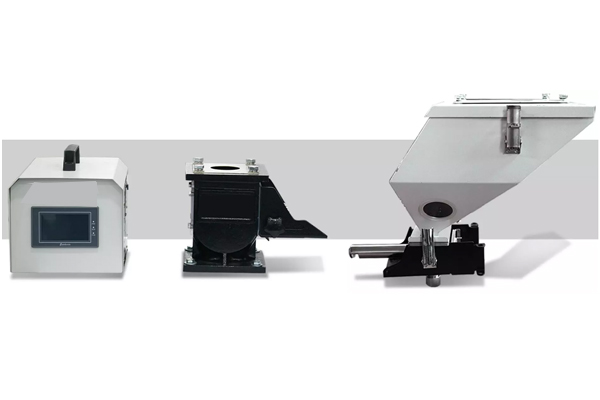

Detachable Modules

Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability;
The roof-shaped quick-change (the dosing section can be removed without granulate leaking from the neckpiece
