High Speed Granulator
Categories
High Speed Granulator
The device is applicable to centralized pulverizing of all kinds of plastics, including the waste of injection molding and extrusion forming. The structure of granulator is compact for convenient operation, easy cleaning and maintenance which enhances the working efficiency.
Feature
- The knife tool is refined of imported special tool-steel, the clearance between knife tools are adjustable, since it becomes blunt by using, it can be dismounted repeatedly. It is durable.
- Using high-intensity steel screws to fasten the knife and knife seat, having strong bearing capacity.
- All walls of shedder chamber are treated by soundproof, so have low noise
- The electric motor has overloading protection with power source interlock protection device.
- Double safety protection for operators and electric motors.
- Step-type motion knife design with strong breaking capacity.
Product Details

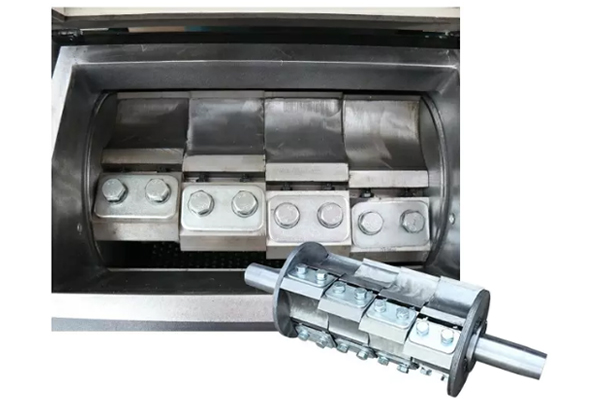

Durable cutter
- These granulators use the blades combining with claw and flat cutter
- Flake type cutter is suitable for conventional sheets, tube plastic, profiles, packing plastics, extrusion mold products and runners etc.
- Mainly shaft: 45# tempered steel

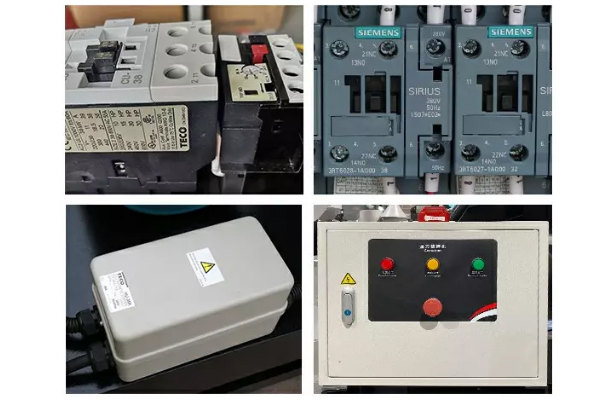

Electrical Components
- Within 600 models installed with magnetic switch having stable working performance and safety.
- CE standard and above 800 models which using SIEMENS electric components..

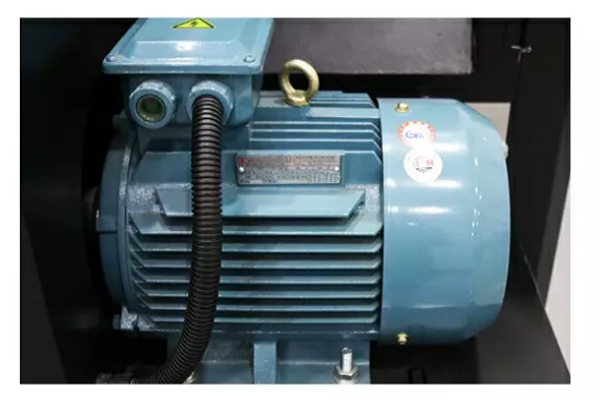

Motor
- The motor adopts all copper wire motor; long life and durable
- Motor protection cover is optional

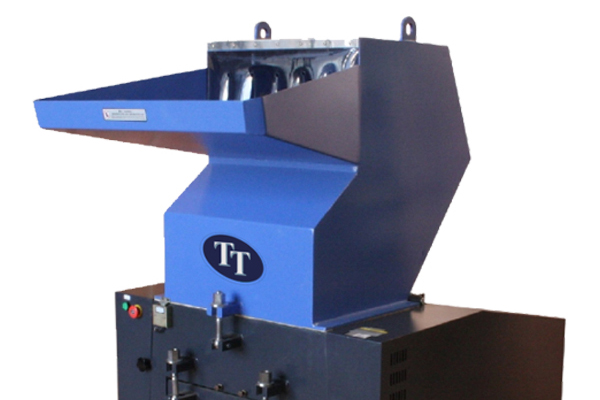

Feeder Hopper Design
- Double-casted with 4 sides hopper, reducing the noise while crushing
- The inner layer is made of stainless steel and the outer layer is casted by thicker iron

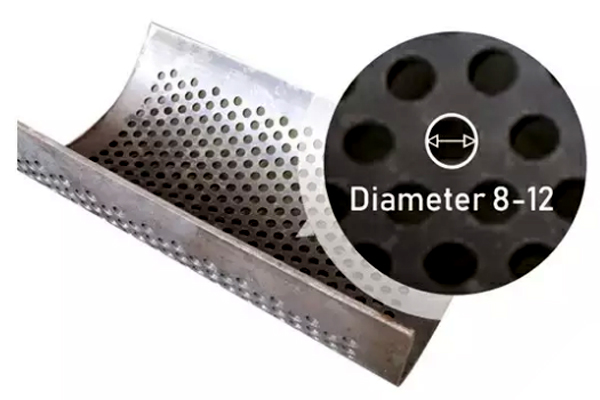

Customized Screen Mesh
- Customized mesh sizes are available according to client’s demand

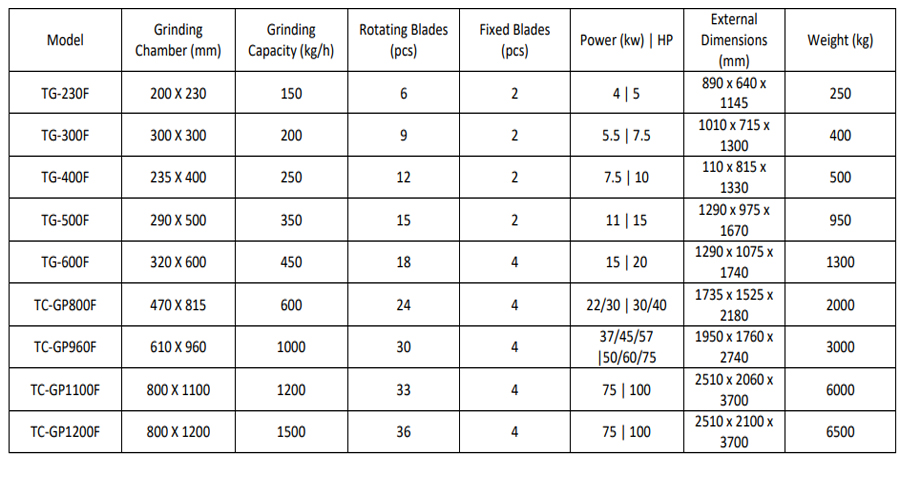

Specification :
