Gravimetric Blender

The Gravimetric Blenders are used in injection, extrusion and blowing production with more than one materials by different proportional mixture.

Advantages of Gravimetric Blender.

Suitable for processing up to four components simultaneously
Adopting advanced control algorithm, autonomous optimization, automatic calibration and shaking prevent function, ensure the best accuracy.
Color chart shown, touch screen operation, three languages on-line switching
Up to 100 recipes can be stored for later use.
Multilevel password protection and historical alarm record.
Can be directly mounted on the machine or optional feet frame installed in machine side.

Product Details

Advanced Control Algorithm

Adopting advanced control algorithm, autonomous optimization, automatic calibration and shaking prevent function, ensure the best accuracy.

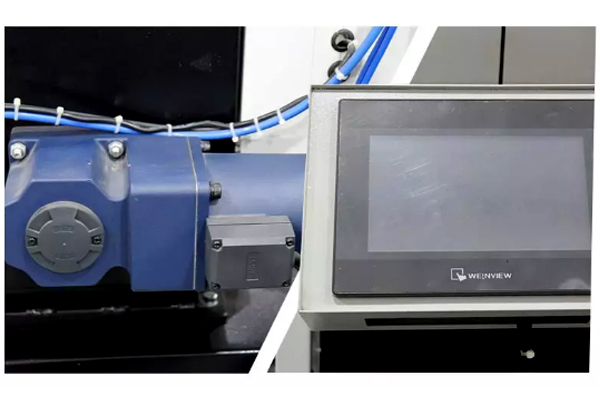

High Quality Core Component

PLC controller, reliable performance, convenient maintenance, USB2.0 interface for saving recipe data to flash disk, facilitate the quality management.
Up to 100 recipes can be stored for later use.

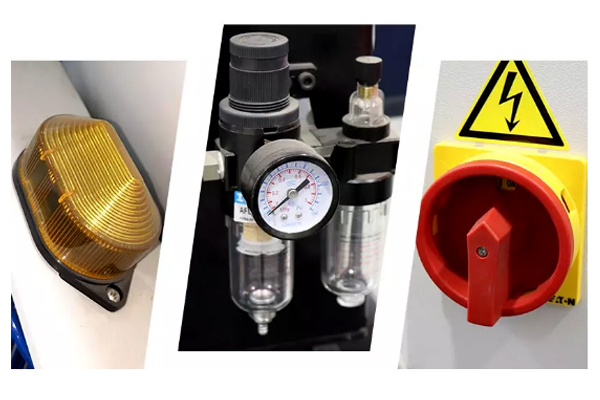

Alarm System

Multilevel password protection and historical alarm record.
With sound and light alarm, facilitate operator quickly and accurately reach fault machine area.

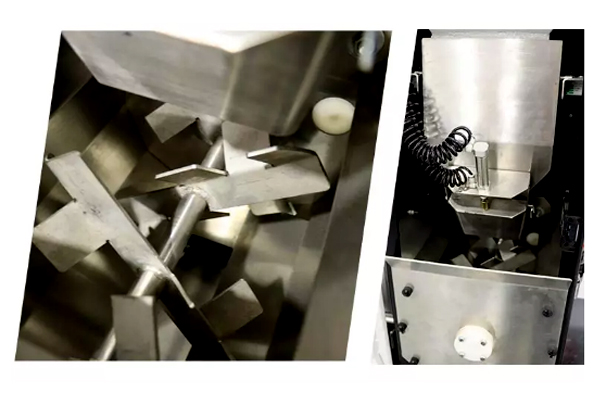

Stainless Steel Material

All raw material contact parts are made by stainless steel, prevent the materials being polluted.

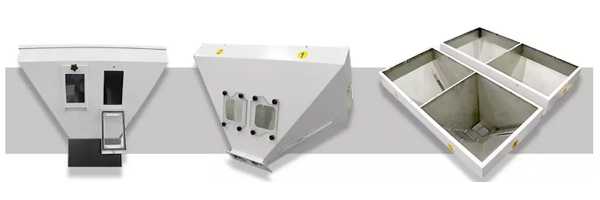

Removable Structure Design

All parts accessible for easy cleaning

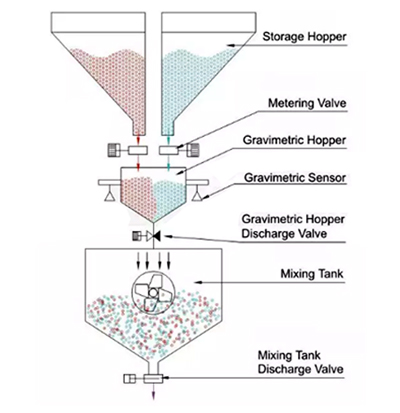

Working of Gravimetric Blender

Machine starts working and dosing valve opens to release material by setting values. If controller detects the discharging quantity reached setting value, dosing valve closes up. If discharging quantity stays within allowed error range, machine will discharge next material. When all the material dosing completes, scale valve opens to release materials into the mixing tank. Mixer motor starts to mix. Mixing time can be settled by controller. Mixture will be discharged to the storage tank and ready for injection
